Fujian Nanan Shuitou Ming Diamond Tool Co., Ltd
from
China, Quanzhou
-

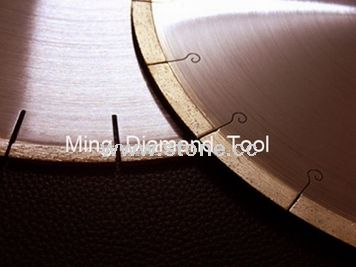

Diamond Segment (M-04-01)
-
Place of Origin:
China
-
Type:
Diamond Tools and Consumables
-
Genre:
Diamond Tools, Consumables and Stone Care Products
-
sCode:
STPR1282912
-
Place of Origin:
China- 1) High quality segments for granite and marble cutting
2) We can manufacture according to your exact specifications and dimensions
3) We also manufacture diamond blades and drills for all applications
4) Sizes: suitable for saw balde from 900 -3,000mm
5) For single and multiblade applications
6) Special design upon your request) Diamond Segments used for single saw blade from diameter 200mm to 3,500mm, multi saw blade, gang saw, calibrating roller and so on.
Diameter(mm) specifications L*W*H(mm) No of segments
900 24*6.5*13 24*6.9/6.1*13 64
1,000 24*6.5*13 24*6.9/6.1*13 70
1,100 24*7*13 24*7.6/6.6*13 74
1,200 24*7*13 24*7.4/6.6*13 80
1,300 24*8*13 24*8.4/7.6*13 88
1,400 4*8*13 24*8.4/7.6*13 92
1,500 4*8.8*13 24*9.2/8.4*13 100
1,600 24*8.8*13 24*9.2/8.4*13 108
1,700 24*8.8*13 24*9.2/8.4*13 112
1,800 24*9.5*13 24*9.9/9.1*13 120
2,000 24*10.5*15 24*11/10*15 128
2,200 24*10.5*15 24*11/10*15 132
2,500 24*12*20 24*12.5/11.5*15 140
2,700 24*12*20 24*12.5/1105*15 140
3,000 24*12*20 24*12.5/11.5*15 160
1) Diamond Segments used for single saw blade from diameter900mm to
3,000mm, multi saw blade, gang saw, calibrating roller and so on.
2) Used for marble, granite, concrete and limestone
